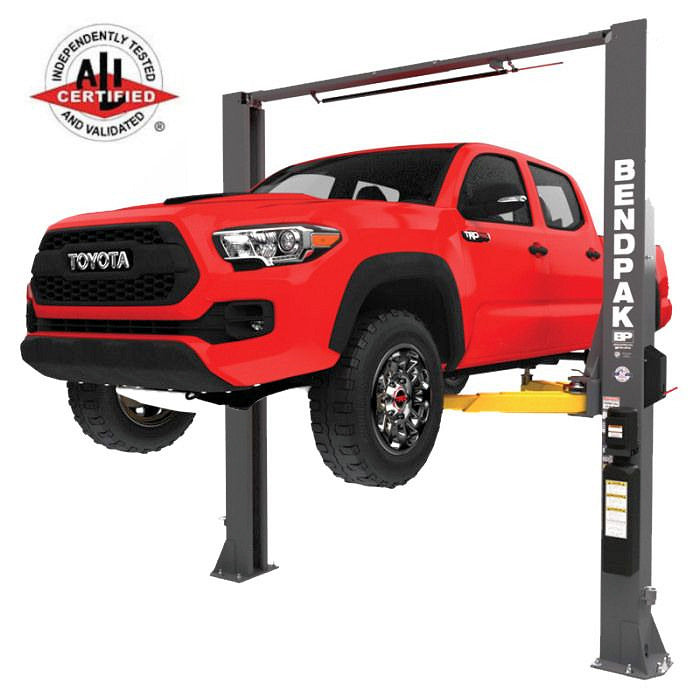

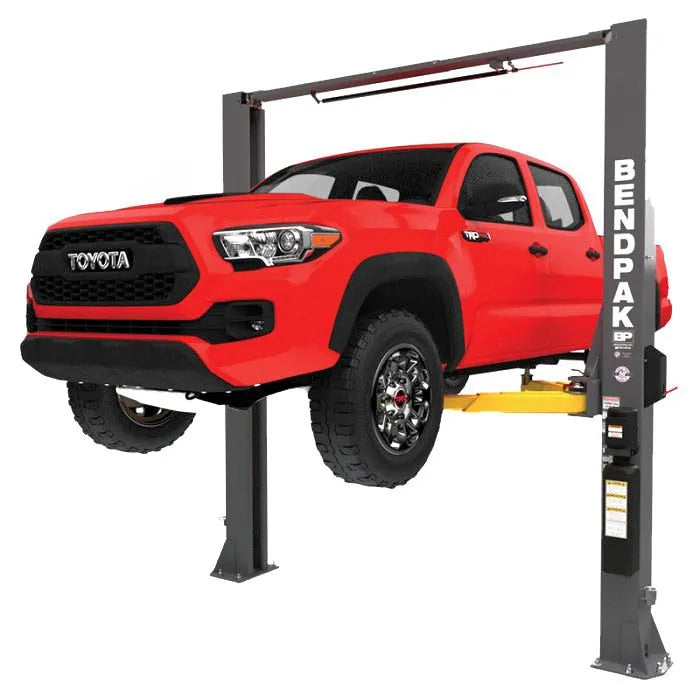

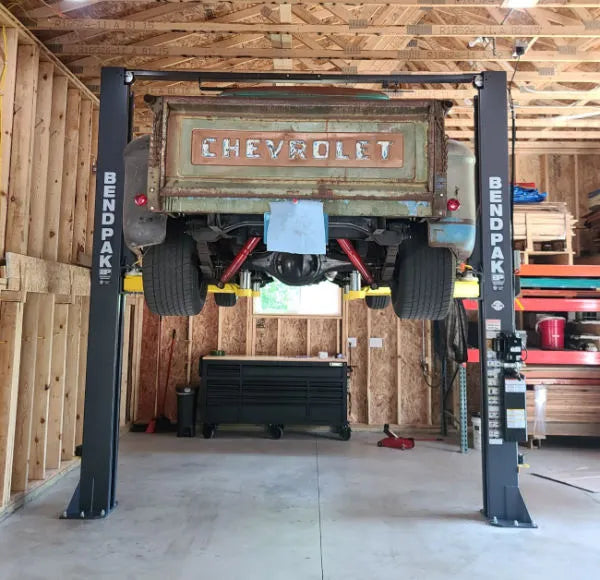

BendPak 10AP Two Post Lift 10,000 lbs. Capacity

BendPak 10AP Two Post Lift 10,000 lbs. Capacity
Adaptable, Clearfloor with Adjustable Width

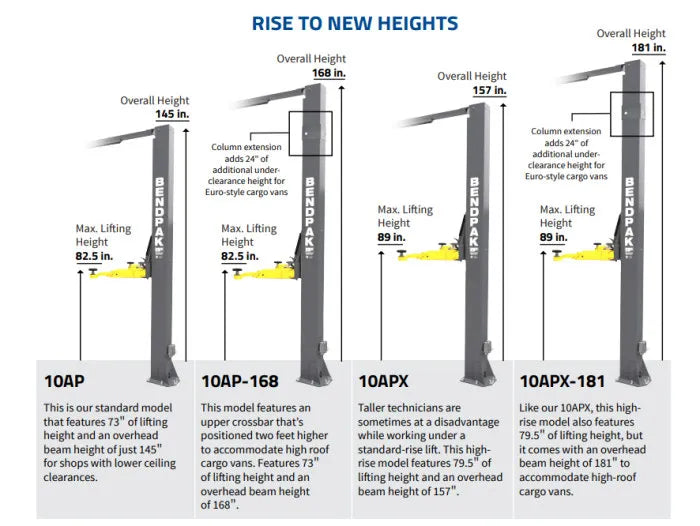

82.5" Max. Lifting Height, 145" Overall Height

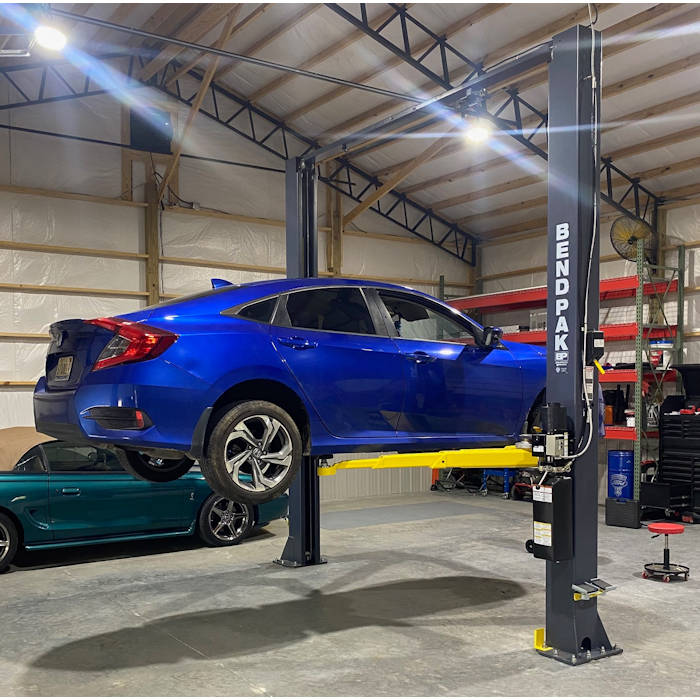

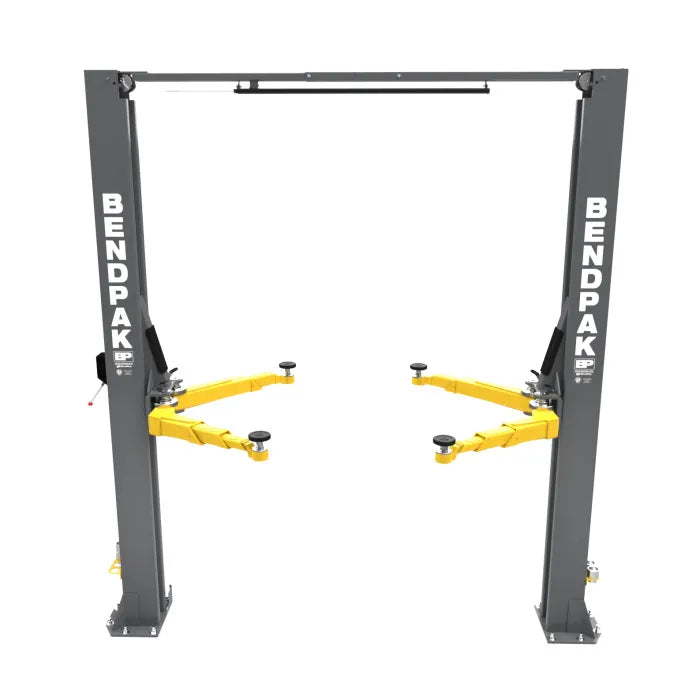

The BendPak 10AP Two Post Lift offers exceptional direct-drive lifting performance. This industrial-strength car lift guarantees cutting-edge technology, top of the line materials, a design that's ahead of its time and a 10,000-lb. lifting capacity. The 10AP Series offers the convenience of wide or narrow installation wrapped up into one configurable package. This durable, safe, and reliable car lift features an expandable top beam and BI-METRIC arms to suit virtually every vehicle lifting requirement - symmetric or asymmetric. The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.

The 10AP is our standard model that features 73" of lifting height and an overhead beam height of just 145" for shops with lower ceiling clearances.

A NEW PARADIGM IN LIFTING

Auto repair shops working on the latest technology need to be equipped with the latest and most advanced tools to service them properly; they need to evolve alongside the vehicles they service. BendPak's all-new AP series of two-post lifts feature a evolutionary design that factors the best qualities of today's two-post lift types into a completely new concept in car lift engineering. The result is a lift unlike any other two-post lift on the market, purposefully designed for extreme use, high loads and operator safety and efficiency.

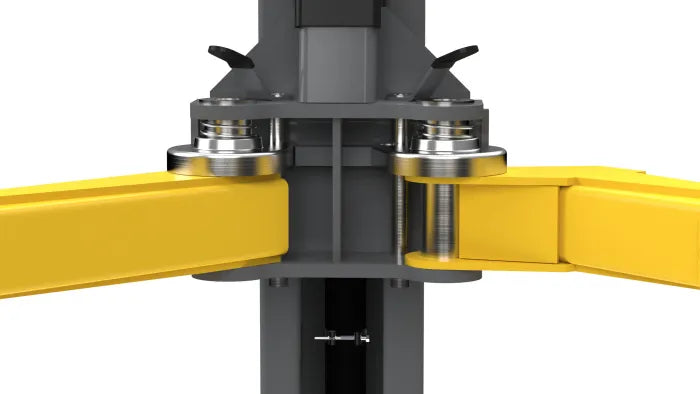

Redefining Safety and Stability Through ASARS
(Automatic Swing Arm Restraint System)

For decades, swing arms restraints have been integral to two-post lifts, minimizing the risk of arm shifting during vehicle loading and servicing. Despite that, traditional systems often struggle to withstand the considerable forces exerted when vehicles unexpectedly shift on support pads or adapters. This challenge arises from factors like improper loading or the addition/removal of heavy drivetrain components, resulting in an unanticipated shift in the vehicle's center of balance.

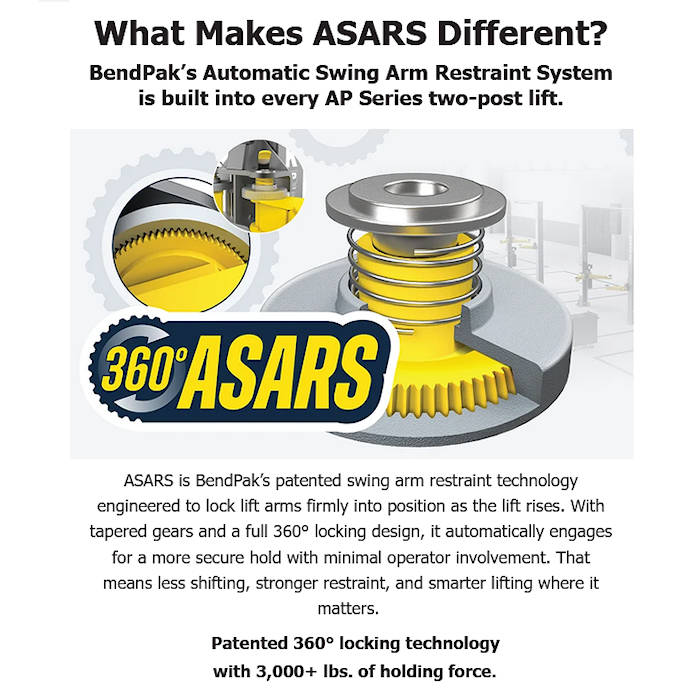

BendPak's AP Series introduces a groundbreaking solution: the Automatic Swing Arm Restraint System (ASARS). Engineered to tackle these challenges head-on, ASARS is fortified to withstand the elevated pushing and pulling forces encountered during vehicle service. This innovative design feature sets the AP Series apart, making it exceptionally well-suited for heavy vehicle service tasks.

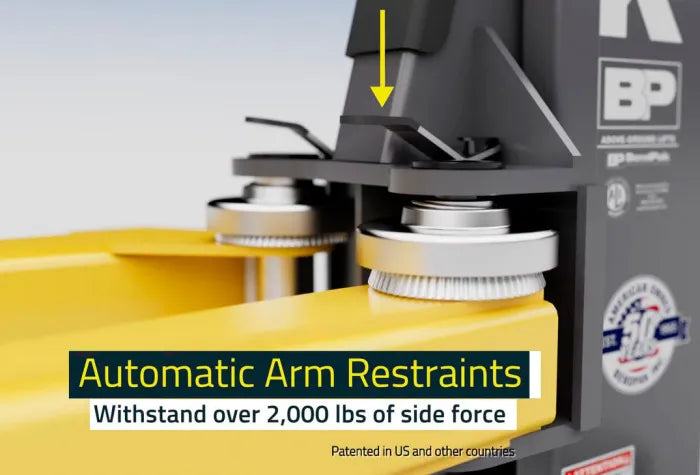

The patented Automatic Swing Arm Restraint System in BendPak's AP Series offers a remarkable 360-degree load-holding grip. Crafted from heavily forged steel, this exclusive design secures lift arms with over 2000 pounds of force, preventing unplanned movement during lift operation and vehicle servicing. Notably, this adaptive system requires minimal operator intervention while delivering unmatched holding power. Its distinctive power-hold design ensures precise, non-shifting action, with a convenient quick-release operator lever for instant clamping pressure release.

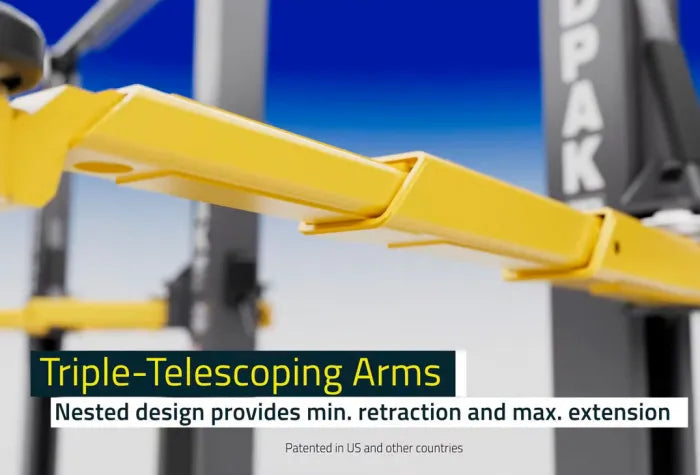

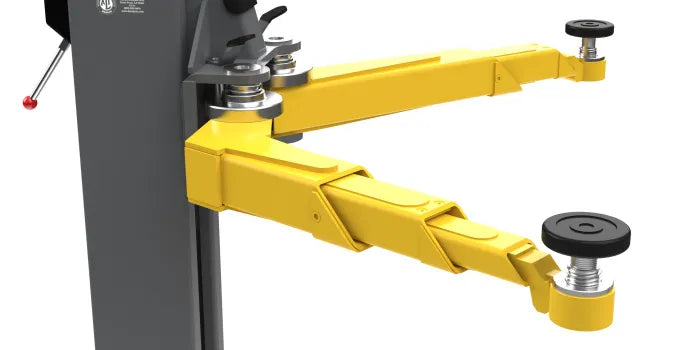

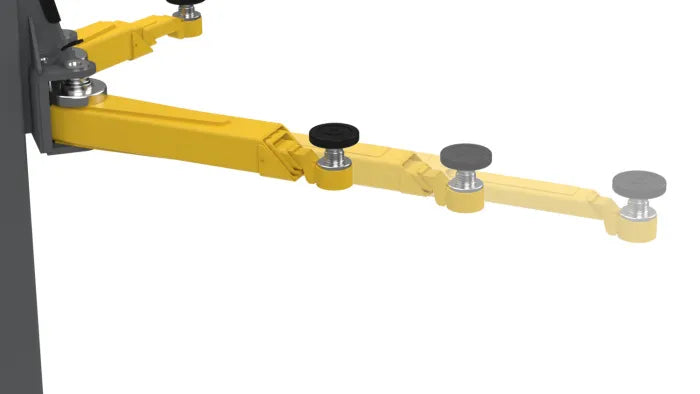

Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms are specifically tailored for varying vehicle lifting points. Unlike traditional two-post lift arms, 10AP arms retract shorter and extend farther; offering lift operators a myriad of lift arm positioning options - it's like having the best of all worlds.

The innovative three-stage arms achieve more telescoping movement due to their patented nesting feature that results in greater retraction and farther reach. Inner sliding arm movement is no longer impeded by arm end plates, tube closeouts, or even the arm pivot pin itself. The inner tubes retract fully through the back of the arm assembly end even beyond the arm pin, resulting in more achievable retraction and extension.

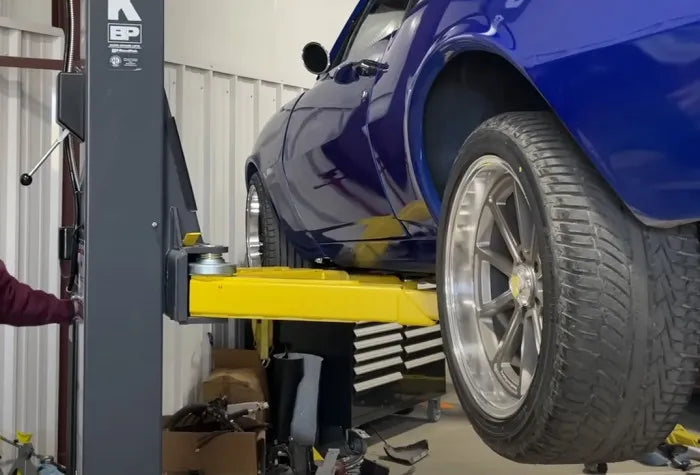

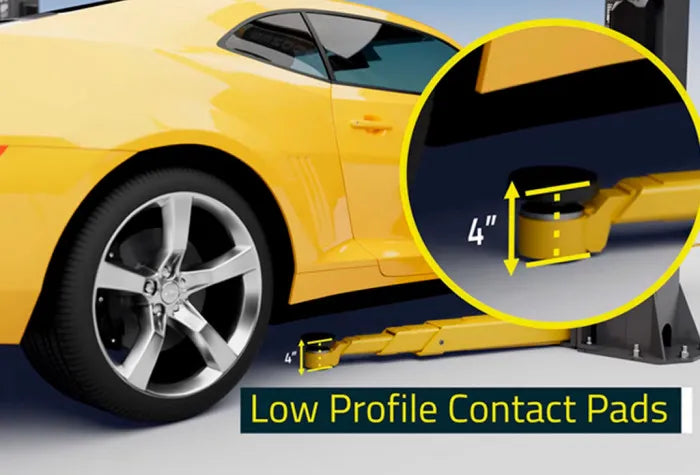

Low Profile Arms
BendPak's exclusive Low-Pro swing arms feature telescoping channels that have a shorter profile and a dropped-end pad receiver resulting in better serviceability on lowered chassis-height vehicles. They access hard-to-reach lift points with less hindrance providing increased versatility and less chance of damage to vehicle side skirts, running boards or ground effects. Varying height stackable adapters combined with two stage spin-up screw pads provide greater vertical pad placement for precise and safe vehicle support.

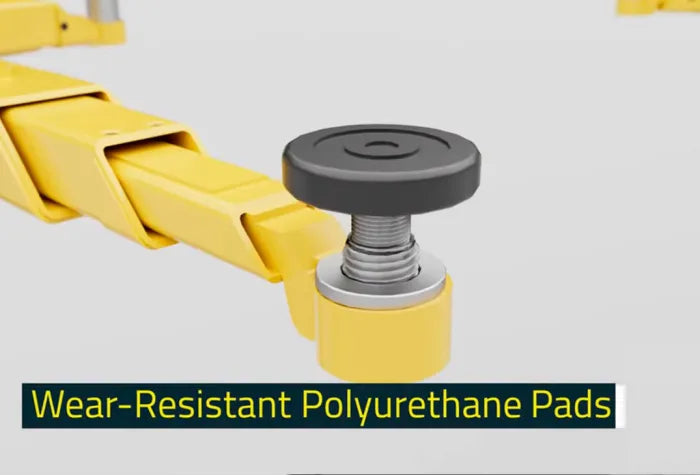

Screw Pads and Adapters That Adjust To Your Needs

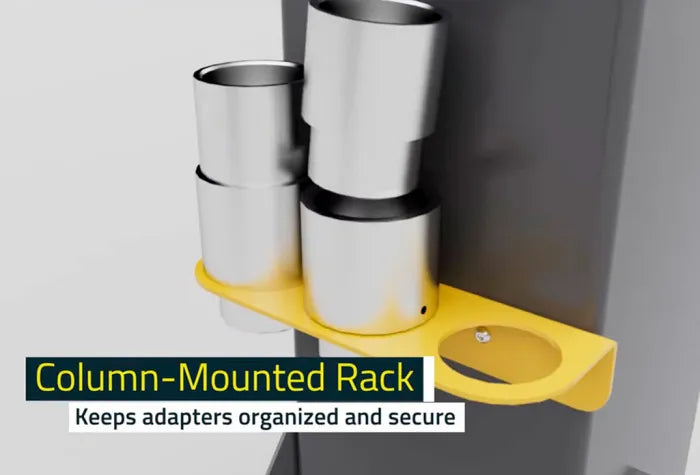

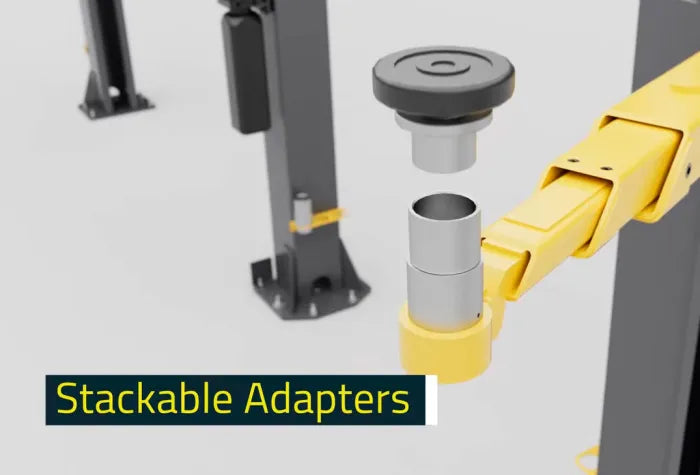

Double-telescoping screw adapters feature gouge and tear-resistant polyurethane pads that can be screwed up or down to ensure level lifting in all conditions. Provides more precise and secure frame engagement, ensuring technician safety. For greater vertical pad placement, we also offer OPTIONAL 2.5" and 5" stackable adapters for precise and safe vehicle support. The drop-in design allows for quick and easy use, and 2 column mounted racks keep the adapters neatly organized and secure.

Innovative Safety Lock System
The patented automatic safety lock system is designed to dramatically improve operator efficiency and safety. The simple yet innovative design ensures automatic safety lock engagement during all lift rising operations, and an ergonomic single point release allows operators to effortlessly release the safety locks during lift descent - literally with a push of a single finger. It's that easy.

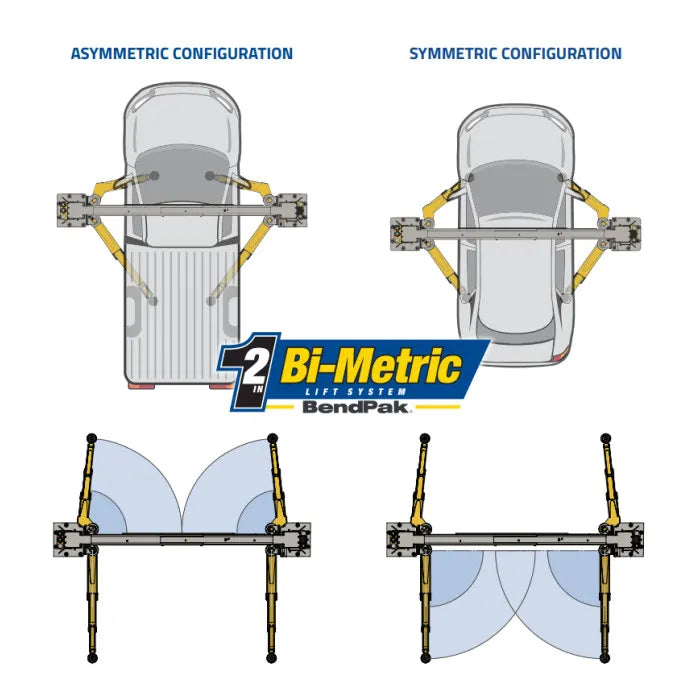

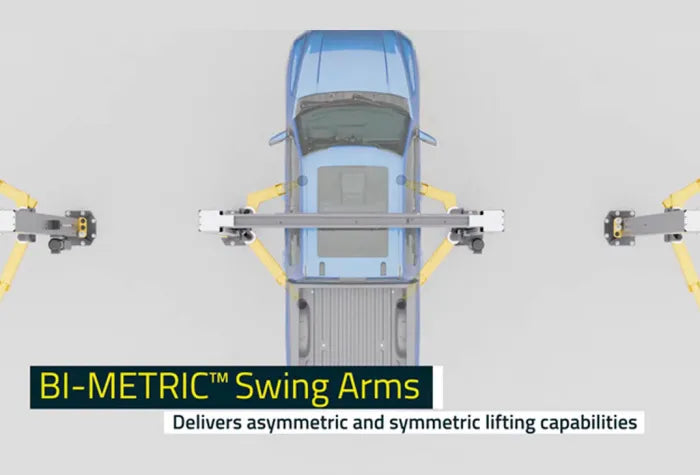

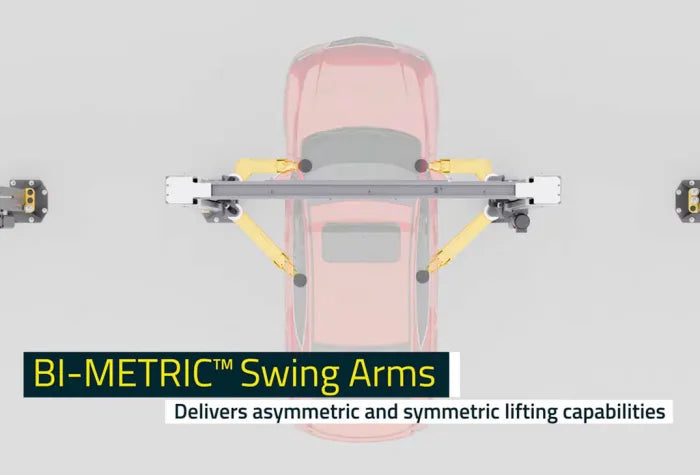

Bi-Metric Swing Arms

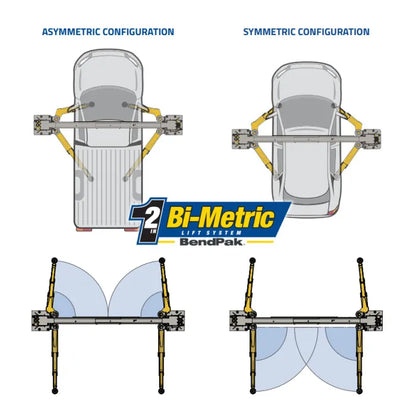

Exclusive BI-METRIC adaptable swing arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design gives operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you'll be able to service vehicles faster than ever before.

With Every AP Series Lift You Get...

• Clear-floor convenience - unobstructed floor space allows technicians the ability to easily move toolboxes, transmission jacks, oil drains, and other equipment underneath elevated vehicles.
• Bi-Metric swing arms - give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design gives installers and operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column).
• Low-Pro swing arms - low-profile telescoping swing arms offer less hindrance providing increased versatility and less chance of damage to vehicle side skirts, running boards, or ground effects.
• Automatic arm restraints - each arm is equipped with durable 360-degree full-contact geared arm restraints that provide over 2000-pounds of load-holding force and automatically engage each time the lift is raised. When the lift is lowered, the gear- type arm restraints automatically disengage to provide easy positioning of the lift arms.
• Configurable wide or narrow installation - allows you to maximize the use of your floor space.
• Single-piece columns - we purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions.
• Maintenance free load bearings - rather than using roller bearings that need constant lubrication and maintenance, every AP series lift carriage uses futuristic ultra-high molecular weight (UHMW) polyethylene load bearings that never need lubrication and last virtually the life of the lift.
• Dual Direct-Drive technology - by utilizing two low-pressure Direct-Drive cylinders, we've eliminated the need for lifting chains or screw mechanisms most commonly found on other lift designs. This Direct-Drive technology offers better reliability, smoother operation, and less maintenance. Low pressure means a much smaller workload is placed on the entire hydraulic system.
• Single-point safety release - the single-point safety release and dead-man style operation controls makes every one of our AP series lifts easy to operate and safe to use.
• On the level - our Dual-Synchro equalization system maintains equal lifting and provides operators with a stable, level vehicle working condition.
• HVLP hydraulic system - every AP Series lift uses a High Volume Low Pressure (HVLP) electric-hydraulic power system that delivers high fluid volume while maintaining low system pressure. Because the hydraulics are not constantly under high pressure, seal failure and leakages are much less likely to occur.
• Industrial-grade hydraulic cylinders - integrated into every AP Series hydraulic cylinder is a one-piece, pilot-fitted, machined-steel piston wrapped with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands that virtually eliminate any fluid bypass. A micro-smooth chrome rod is machined from high-yield, ground and polished alloy steel and the welded cylinder body exceeds ASTM specifications.
• Super-tall lift carriages - 53" & 59" tall carriages are considerably taller than most two-post styles, which minimizes the stress placed on the load bearings and columns.
• Performance Guaranteed - we're so sure that our lifts will out-perform all others, we're backing that promise with a full five-year warranty. The best warranty in the business gives you more than just peace of mind; it's proof that we took a little extra care building your lift and every precaution was taken to maintain the highest degree of quality, dependability and reliability. For full details visit www.bendpak.com/support/warranty
